Hair and fur

The groom component gives a character real strand hair or an animal fur: tens of thousands to hundreds of thousands of individual strands grown on a mesh or loaded from a file, simulated on the GPU and shaded with a Marschner hair model, physically based pigment and self-shadowing. You start from a preset with groom_create, then style it with the same fields an artist would use: length, comb direction, clumps, curls, waves, frizz and colour.

groom_create with the hair_wavy preset on a bust: about 120,000 strands with clumped waves, a white primary highlight and a coloured secondary highlight.

Concepts

Presets

Preset	Grows on	Strands	Length	Character
hair_straight	Upper back of the mesh (a head)	110,000	0.34 m	Straight, dark brown, light clumping
hair_wavy	Head	120,000	0.38 m	Waves, medium brown with some red
hair_curly	Head	90,000	0.30 m	Ringlets (curl radius 11 mm), near black, stiffer
hair_ponytail	Head	90,000	0.50 m	Combed back and tied at ponytailPosition
hair_short	Head	90,000	0.035 m	Crew cut, not simulated
fur_short	The whole mesh	160,000	0.014 m	Dense pelt, cards below 60 px, not simulated
fur_long	The whole mesh	90,000	0.07 m	Fluffy, clumped, simulated

Head presets grow where the surface faces up and back (maskDirection [0, 0.8, −0.6], maskAngle 95°). For your own head model, adjust the mask or paint a scalp (see below).

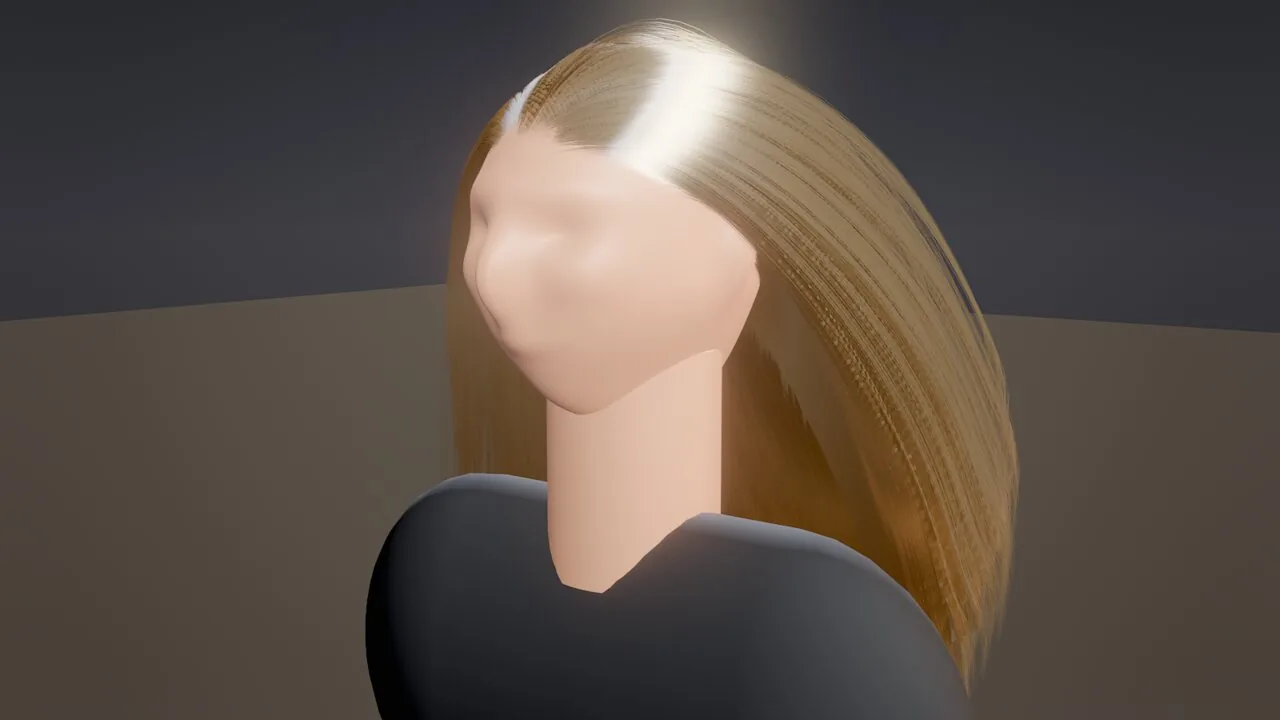

hair_straight with a low melanin: blond

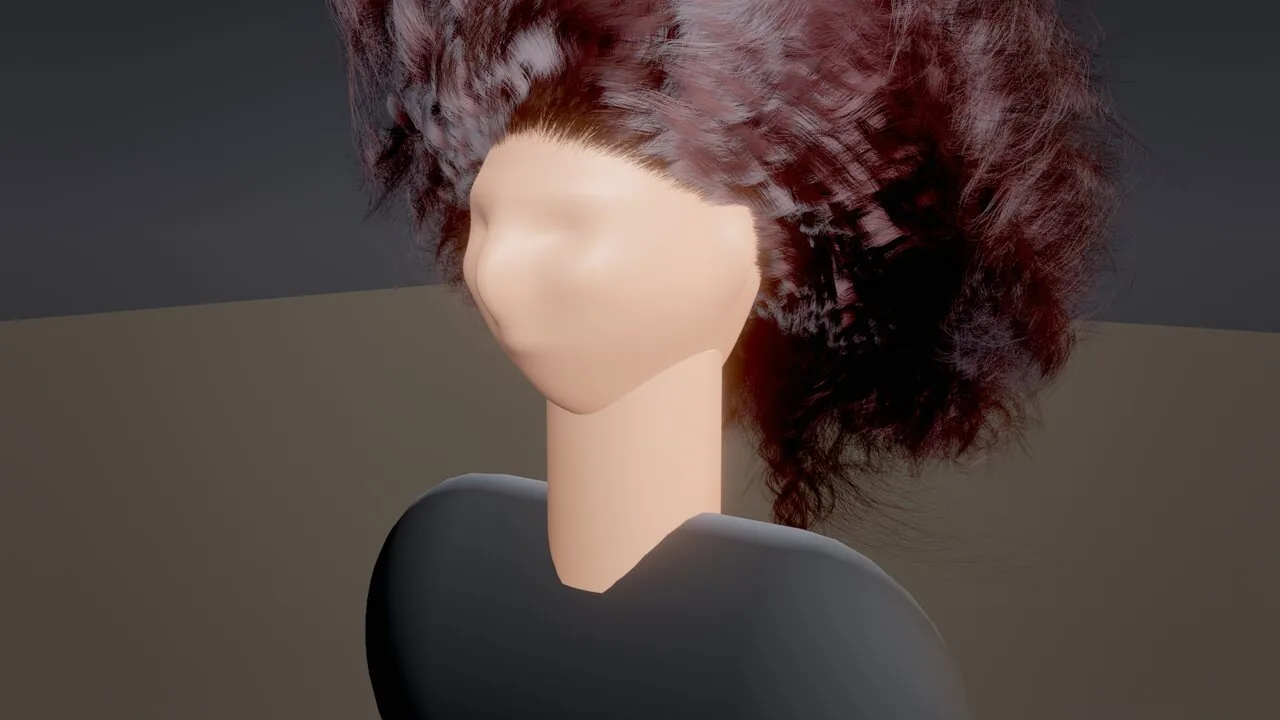

hair_curly: clumped ringlets

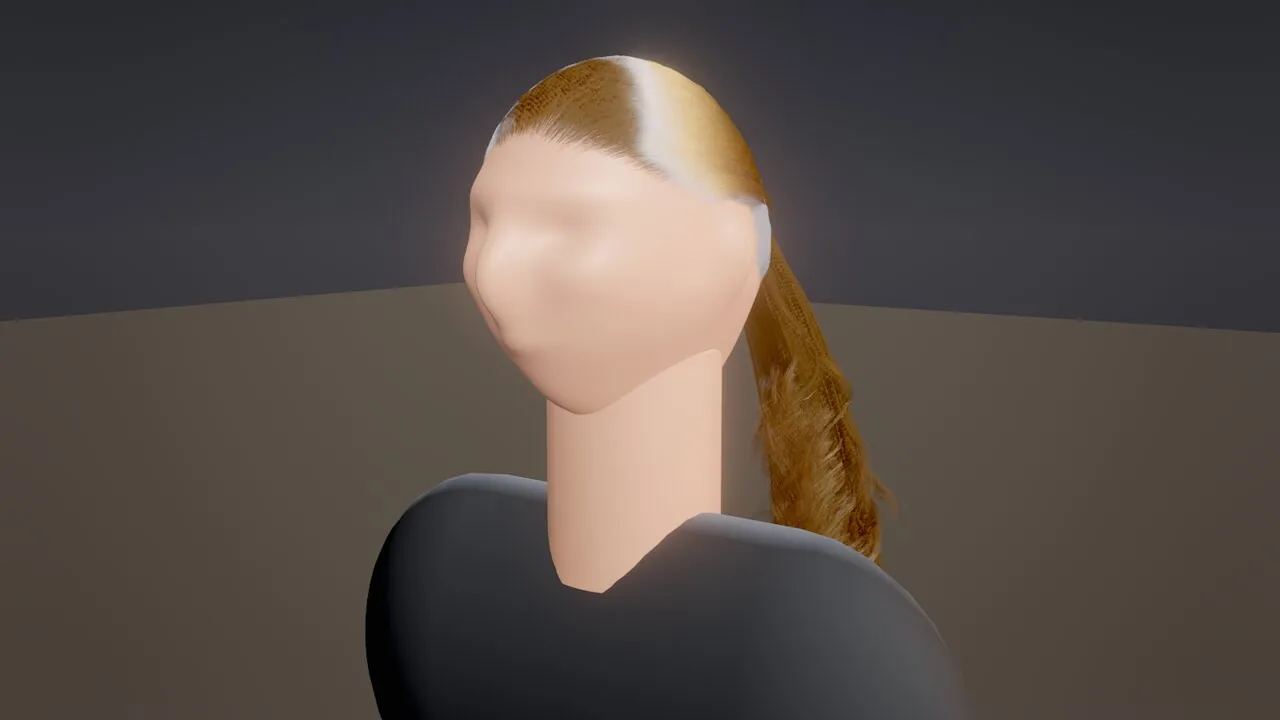

hair_ponytail

How a groom is built

1. Placement. Roots are sampled area-weighted on the mesh: the entity's own mesh, or the mesh of the entity named in target. A density mask combines a cone (maskDirection, maskAngle, with maskSoftness as the width of a soft hairline) with an optional vertex-colour channel (maskChannel), so a painted scalp works. Because vertex colours also tint a mesh's surface, the usual setup is an invisible copy of the head carrying the painted scalp, named in target.
2. Guides. guides strands (0 = automatic, about 4·√strands) grow along the surface: from the normal toward the comb direction projected onto the scalp (directionBlend), drooping with gravity, and kept outside the mesh so long hair drapes over the head. With ponytail, every guide is first combed to ponytailPosition, then hangs as one bundle.
3. Children. The rendered strands interpolate their three nearest guides and add detail in each guide's own frame: clumping toward clump centres (clumps, clumpStrength, clumpShape), helical curls (curlRadius, curlFrequency), waves (wave, waveFrequency) and frizz (frizz, frizzScale). Strands in one clump share their curl phase, so curly hair forms ringlets.
4. Cache. The result is cached per parameter hash (geometry fields, mesh, entity scale, source file time). Generation is deterministic and multi-threaded: about 0.3–0.7 s for 100,000 strands.

Grooms are generated in meters on the scaled mesh: an entity scaled to head size does not shrink its hair. Lengths are in meters and widths in millimeters (human hair is 0.05–0.1 mm).

Fields

Shape

Field	Meaning
strands	Rendered strands: 50k–150k for a head of hair, 100k+ for fur. For imported files, a cap (a uniform subset).
guides	Simulated guide strands; 0 = automatic.
segments	Segments per strand: 4 for fur, 16–31 for long or curly hair.
length, lengthVariation	Strand length (m) and its random variation (fraction).
widthRoot, widthTip	Strand width in millimeters at the root and tip.
direction, directionBlend	Comb direction in mesh space (for example [0, −1, −0.4] = down and back) and how much the strands follow it instead of the normal.
gravity	0 stands up (fur, crew cut) .. 1 hangs down.
curlRadius, curlFrequency	Curl radius (m; 0.005–0.02 for curly hair) and turns per meter.
wave, waveFrequency	Wave amplitude (m) and waves per meter.
clumps, clumpStrength, clumpShape	Number of clumps, how far strands pull into them, and the profile (> 1: tips clump more than roots).
frizz, frizzScale	Flyaways (m) and their noise frequency.
ponytail, ponytailPosition	Tie everything at a point in mesh space, just outside the scalp.
maskChannel, maskDirection, maskAngle, maskSoftness	Where hair grows (see Placement).
density	Coverage per strand (2 = a full head at typical strand counts).
seed	A different head of the same style.

Colour and shading

Field	Meaning
melanin	Pigment amount: 0 white, 0.1 platinum, 0.2 blond, 0.35 dark blond, 0.5 light brown, 0.7 brown, 0.85 dark brown, 0.95+ black.
redness	Red pigment fraction: 0.5 auburn, 0.9 ginger.
dye	Dye tint (white = natural).
rootColor, tipColor	Colour multipliers at the roots and tips (dark roots, sun-bleached tips).
colorVariation	Per-strand pigment variation.
roughness	Longitudinal roughness: highlight width (0.2 silky .. 0.6 dull).
radialRoughness	Azimuthal roughness: softness of light through the strand.
specular	Strength of the primary (white) highlight.
scatter	Multiple scattering: light hair glows, dark hair stays rich.
cuticleTilt	Degrees; separates the two highlights.

Motion and rendering

Field	Meaning
simulate	Simulate on the GPU. false keeps the groomed shape (it still follows the entity).
stiffness, rootStiffness	How strongly strands keep their groomed shape, overall and near the roots.
damping	Velocity damping.
wind	Influence of the environment wind (0–10).
collide, colliders	Collide with the mesh's proxy and with the comma-separated entities in colliders (for example "Torso, Neck").
lod, cardsBelow	auto (strands up close, cards far away), strands or cards; the size in pixels below which auto switches to cards.
castShadows, visible	Shadows on the scene; drawing on or off.

Geometry fields (strands, length, curls, clumps, mask) regenerate the strands when they change. Colour, shading and motion fields apply instantly.

Physically based colour

Colour is an absorption coefficient, not an RGB value. melanin sets the amount of eumelanin and pheomelanin and redness their ratio; dye, rootColor and tipColor add absorption. Dyed hair therefore keeps a white primary highlight, and the same groom looks right under noon sun, a candle and a neon sign.

Simulation

Guides are simulated on the GPU every frame, one thread per guide, with substeps at 120 Hz:

• Verlet integration with gravity and the gusting environment wind (scaled by wind);
• global shape stiffness toward the groomed pose, strongest at the roots (rootStiffness);
• local shape stiffness: each segment keeps its rest angle relative to its parent (stiffness);
• follow-the-leader length constraints, so strands do not stretch;
• collisions with spheres, capsules and planes: the head's own proxy plus the entities in colliders.

Rendered strands follow their guides through stored frame offsets.

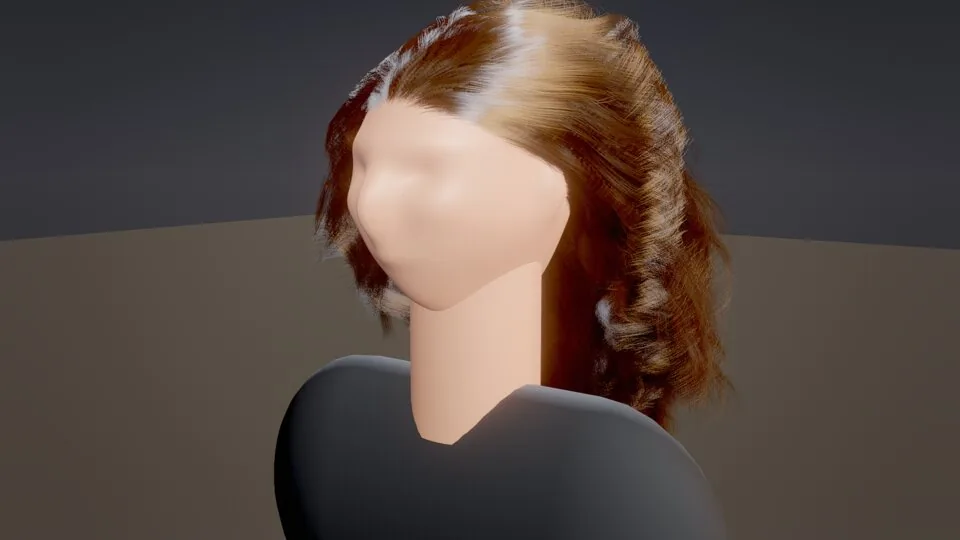

The hair_wavy groom in a breeze: environment_update {"windSpeed": 6}, simulated guides with the children following.

Shading and rendering

• Strands. Every strand is an instanced triangle strip expanded to a camera-facing ribbon. Strands thinner than a pixel are drawn about one pixel wide with proportionally lower coverage, turned into a stochastic MSAA sample mask that changes every frame and sub-sample. Thin hair resolves smoothly under temporal anti-aliasing and in accumulated stills, without sorting.
• Marschner shading. A real-time fit of the Marschner model with three lobes: R (the white primary highlight, shifted by cuticleTilt), TT (light through the strand: the backlit glow) and TRT (the coloured secondary highlight), with longitudinal (roughness) and azimuthal (radialRoughness) terms, plus a multiple-scattering term (scatter).
• Self-shadowing. A deep opacity map per groom from the sun (front depth plus four cumulative density layers, 512²), combined with the depth of the opaque meshes around the groom, so the head shadows the hair. Light through light hair is tinted (a dual-scattering approximation). Other occluders come from the regular sun cascades.
• Shadows on the scene. Hair is drawn into the sun cascades with stochastic coverage, so the face and shoulders get soft hair shadows.
• G-buffer. Hair writes albedo, its shading normal and a hair flag. Screen-space GI, reflections and ambient occlusion leave those pixels alone; hair has its own ambient and occlusion terms.
• Level of detail. With lod: auto, the groom draws strands up close and cards far away (cardsBelow pixels: guide strands as wide ribbons with procedural strand alpha). In real time the strand count follows the groom's size on screen (fewer, more opaque strands). Stills rendered with samples > 1 always draw every strand.

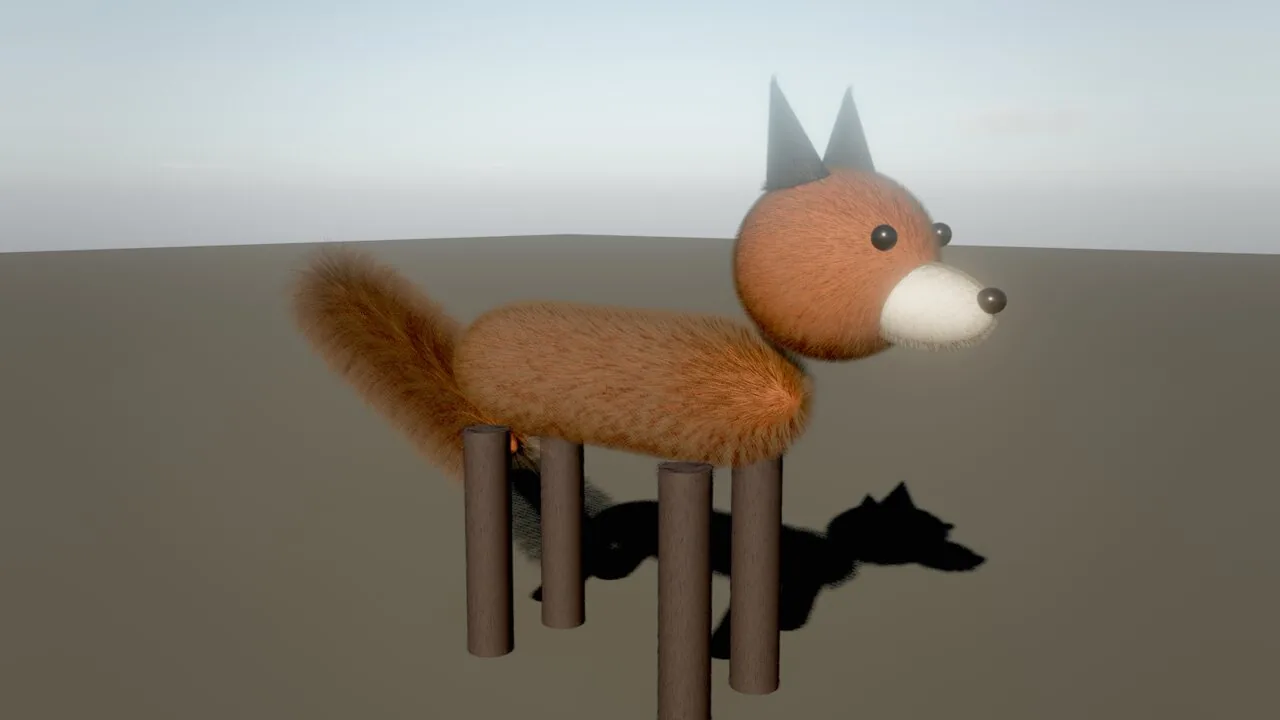

One groom per body part: fur_short on body, head, snout (low melanin: white), ears and legs; fur_long on the tail

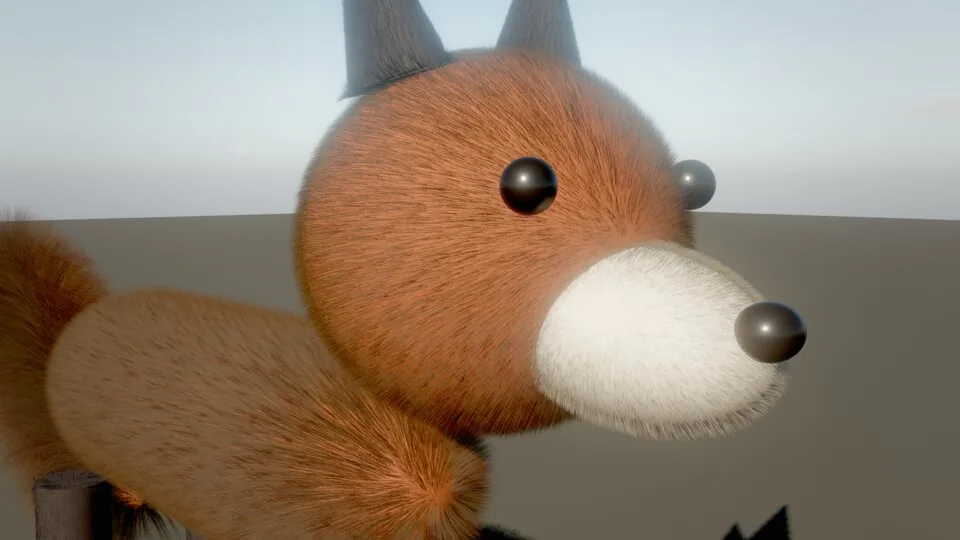

Close-up: individual strands, combed direction and soft self-shadowing

Groom files

Format	Notes
.hair	The binary HAIR format by Cem Yuksel: segments, points and thickness arrays. Many public groom datasets and DCC exporters write it.
.groom.json	{"format": "skywalker-groom", "version": 1, "strands": [[x, y, z, ...], ...], "widths": [mm, ...]}; widths is optional. Readable and easy to script.
.skygroom	Compact binary: SKYGROOM magic, u32 version (1), u32 strands, u32 points per strand, u32 flags (bit 0: widths), then floats.

Set source to load a file. importScale converts units (0.01 for centimeters) and importZUp handles Z-up files. strands then caps the count with a uniform subset. Imported strands keep their exact shape; a subset becomes the simulated guides.

How to add hair

Tool callCLIWander

groom_create {"entity": "Head", "preset": "hair_wavy", "overrides": {"melanin": 0.5, "redness": 0.6}}
groom_update {"entity": "Head", "fields": {"curlRadius": 0.01, "curlFrequency": 16, "length": 0.3}}
groom_info {"entity": "Head"}

skywalker call groom_create '{"entity": "Head", "preset": "hair_straight", "overrides": {"melanin": 0.2}}' --project .

behavior WindBlownHair
  intent "Hair reacts more strongly to the wind while the character stands on the cliff edge."
  param calm = 1 in 0..10 "wind influence away from the edge"
  param exposed = 4 in 0..10 "wind influence near the edge"

  on tick
    let edge = find("Cliff Edge")
    if edge and distance(self, edge) < 6 then
      self.groom.wind = approach(self.groom.wind, exposed, dt * 2)
    else
      self.groom.wind = approach(self.groom.wind, calm, dt * 2)
    end
  end
end

groom_create works on any entity with a mesh; a sphere stands in for a head while you block out the look. groom_update can also reset to another preset first ("preset": "hair_curly") and then apply fields.

Paint a scalp

1. Duplicate the head mesh and paint the hair region into a vertex-colour channel (for example red) in your DCC app.
2. Import the copy as Scalp, parent it to the head at the same transform and make its mesh invisible, so the painted colours do not tint the face.

3. Point the groom at it and select the channel. maskAngle 180 leaves the decision to the painted mask:

   entity_update {"entity": "Scalp", "parent": "Head", "components": {"transform": {"position": [0, 0, 0]}, "mesh": {"visible": false, "castShadows": false}}}
   groom_update {"entity": "Head", "fields": {"target": "Scalp", "maskChannel": "r", "maskAngle": 180, "colliders": "Torso, Neck"}}


Load a groom file

entity_update {"entity": "Head", "components": {"groom": {"source": "grooms/long_hair.hair", "importScale": 0.01, "importZUp": true, "strands": 80000}}}
groom_export {"entity": "Head", "path": "grooms/head.groom.json"}

groom_export writes the rest-pose strands to .hair, .groom.json or .skygroom for a round trip through a DCC app (see DCC bridge).

Recipes

Look	Settings
Long glossy black hair	hair_straight, melanin 0.97, roughness 0.22, length 0.5, stiffness 0.3
Beach waves, sun-bleached	hair_wavy, melanin 0.35, tipColor "#fff0d8", wave 0.018
Tight curls or coils	hair_curly, curlRadius 0.006, curlFrequency 30, clumps 2000, segments 31
Copper red	melanin 0.5, redness 0.9
Pastel dye	melanin 0.15, dye "#ffb0d8"
Dark roots, blond lengths	melanin 0.2, rootColor "#5a4030"
Ponytail	hair_ponytail; move ponytailPosition (mesh space, just outside the scalp)
Buzz cut or stubble	hair_short, length 0.006–0.02, simulate false
Cat or fox fur	fur_short, strands 150k–300k, length 0.015–0.03, direction toward the tail, body mesh colour close to the fur colour
Fluffy tail	fur_long on a capsule, length 0.08–0.12, tipColor "#ffffff"
Hair in the wind	environment_update {"windSpeed": 6}; the groom's wind scales it
Hair over shoulders	colliders "Torso, Neck"

Recipe: a fox

The fox above is built from primitives with one groom per part. Shared pigment settings keep the parts consistent:

entity_create {"name": "Body", "mesh": "capsule", "color": "#9c4a22", "position": [0, 0.44, 0], "rotation": [0, 0, 90], "scale": [0.36, 0.64, 0.34]}
groom_create {"entity": "Body", "preset": "fur_short", "overrides": {"melanin": 0.62, "redness": 0.9, "colorVariation": 0.3, "tipColor": "#f4e2cc", "density": 3.5, "strands": 300000, "length": 0.03, "direction": [0, 1, 0], "directionBlend": 0.7, "gravity": 0.25}}
entity_create {"name": "Tail", "mesh": "capsule", "color": "#9c4a22", "position": [-0.46, 0.42, 0], "rotation": [0, 0, 64], "scale": [0.14, 0.55, 0.14]}
groom_create {"entity": "Tail", "preset": "fur_long", "overrides": {"melanin": 0.62, "redness": 0.9, "colorVariation": 0.3, "density": 3.5, "strands": 120000, "length": 0.1, "direction": [0, 1, 0], "directionBlend": 0.6, "tipColor": "#fffaf2"}}
viewport_capture {"eye": [1.5, 1.0, 2.2], "target": [0, 0.6, 0], "samples": 16}
groom_info {}

Keep the body mesh colour close to the fur colour so gaps between strands do not show the skin.

Performance

Measured with fx_benchmark in serial mode on an Apple M1 Pro at 1920×1080. The stage scene alone (floor, props, sky, TAA, GI and reflections, bloom) costs 7.4 ms per frame.

Workload	Frame (GPU)	Simulation
100,000-strand groom × 25 points, close-up filling the screen (49,000 strands drawn)	28.8 ms (+21.4 ms)	1.4 ms + 6.7 ms deep opacity
Same groom, medium shot (20,000 strands drawn)	17.5 ms (+10.1 ms)	0.7 ms + 4.1 ms deep opacity

Stills (samples 16–32) draw every strand. groom_info and fx_stats report strand, guide and point counts, memory and the measured GPU cost live for your scene. Budget hair with strands, segments and the LOD fields; a hero head under about 2 ms at 1080p is a reasonable target.

Limits

• No strand-strand collisions. Shape stiffness keeps the volume. Hair collides only with sphere, capsule and plane proxies.
• Sun-only self-shadowing. The deep opacity map covers the sun; lamps light hair without self-shadowing.
• Visual only. Hair is simulated on the GPU; gameplay cannot query strand positions.
• Cards far away. Distant grooms switch to cards; set lod: "strands" for a hero shot if the switch shows.
• Skin. Screen-space subsurface scattering for skin is not implemented; surfaces use the wrap and transmission subsurface term.

For agents

Block out the look on a stand-in, then measure before you commit to strand counts:

groom_create {"entity": "Head", "preset": "hair_wavy", "overrides": {"melanin": 0.25}}     # a styled starting point
viewport_capture {"eye": [0.6, 1.7, 0.8], "target": [0, 1.6, 0], "samples": 16}            # stills draw every strand
groom_update {"entity": "Head", "fields": {"clumps": 900, "wave": 0.018}}                   # iterate on style
fx_benchmark {"frames": 60}                                                                 # real-time GPU cost
groom_info {"entity": "Head"}                                                               # strands, memory, ms

Judge hair in captures with samples of 8 or more: single-sample previews show the stochastic coverage as noise.

Reference

• Tools: groom_create, groom_update, groom_info, groom_export, fx_benchmark, fx_stats.
• Component: groom.
• Related pages: Visual effects, Animation, DCC bridge.
• Design document: docs/HAIR_AND_VFX.md.
